State-of-the-art height measurement

Measurement with ultrasound is probably the most elegant method to determine patient height. Using three pairs of sensors, the measurement is not only exact, it can be done completely hands-free, with clinician several feet away. The optional, automated voice guidance feature and illuminated foot prints support the measurement process. This provides and optimal workflow, eliminates a source of cross-infection and delivers high-precision results in seconds.

One measuring station for all requirements

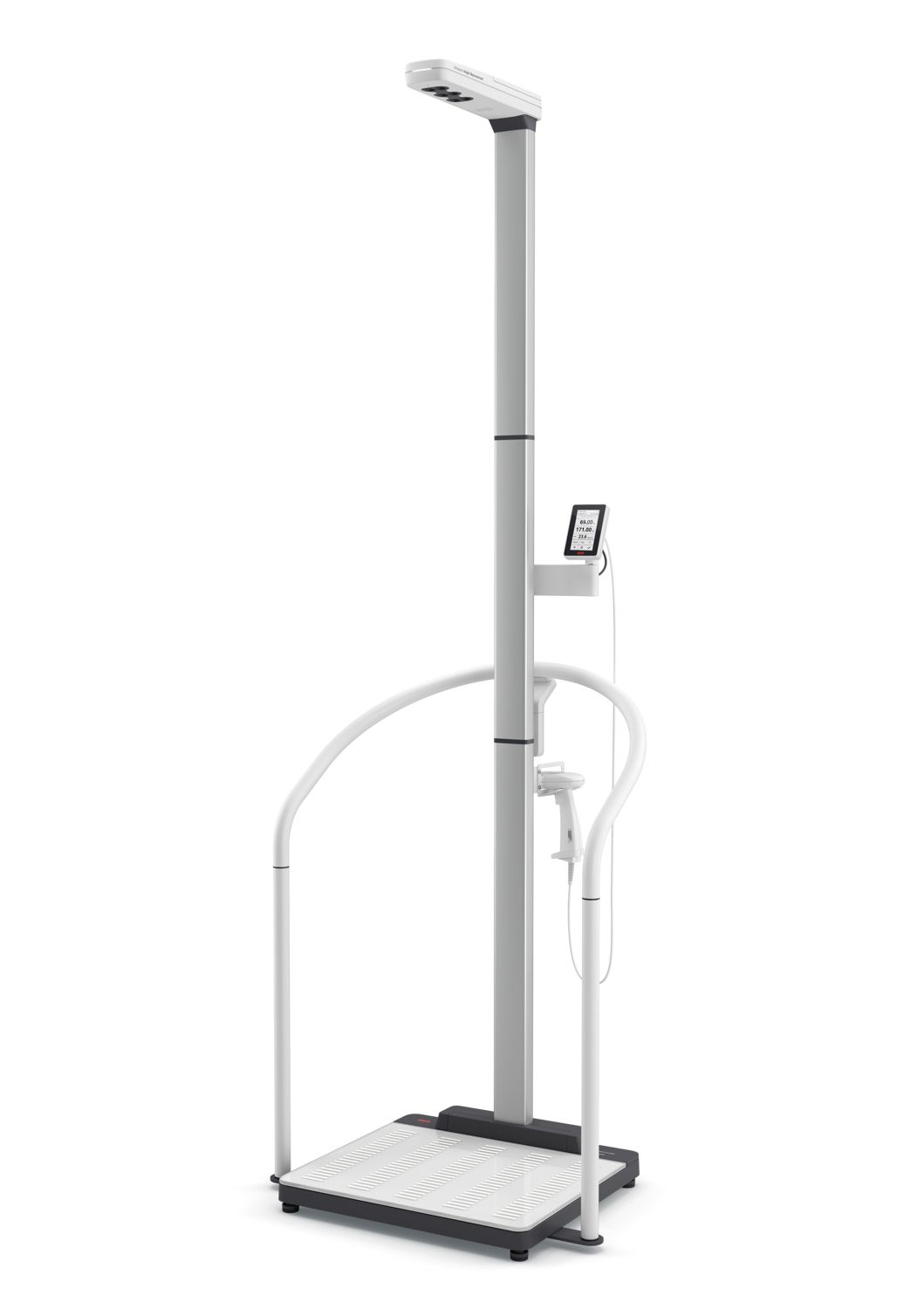

Weighing, measuring and transfer of data immediately into the digital patient fi le (EMR) – this guarantees an effi cient and safe workflow. With its large measuring and weighing range, the seca Scale-up Line is suitable for children as well as for adults. The glass platform not only looks good, but is easy and quick to clean and therefore very hygienic. Enormous platform strength is ensured by the use of specially-developed seca Bearclaw Glass®

ID-Display™ ensures easy and user-friendly data transmission to EMR systems
seca Scale-up Line is developed especially for perfect integration of measured data into the EMR. Weight and data such as time of measurement are stored centrally and accessible for every user. The ID-Display™ shows name or patient ID with every measurement, which are gathered by an additional barcode scanner. This makes the integration process transparent, safe and even more user-friendly.

Technical Data

Scale

• Capacity 300 kg
• Graduation 50 g < 150 kg > 100 g
• Dimensions platform (W x H x D) 600 x 70 x 467 mm
• Functions Display of user and patient name or ID, TARE, Pre-TARE, mother+child function, HOLD, Auto-HOLD, Auto-BMI, CLEAR, Auto-CLEAR, kg/lbs switch-over, cm/inch switch-over, damping, standby mode, Wi-Fi, Ethernet
• Accessories: Barcode scanner mount seca 463,

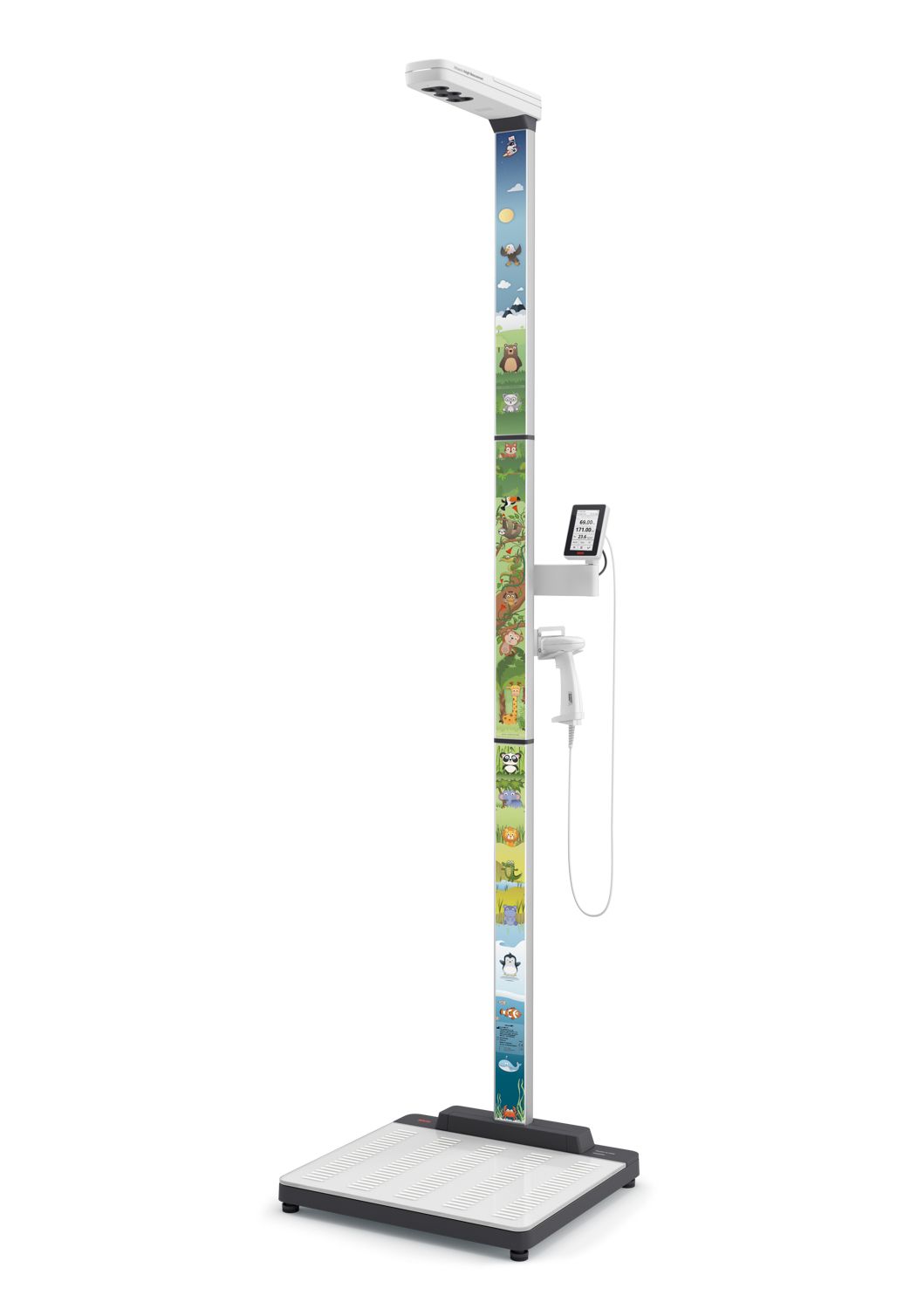

  Panda seca 459, Animal Sticker seca 487

Ultrasonic height measurement

• Measuring range 100 – 220 cm
• Graduation 1 mm
• Functions Automatic calibration

Order code ON SHM AUT NN

•  Flat scale seca 655
• Ultrasonic height measurement seca 257
• Handrail seca 455
